New To The Charts: WD DX4000 Sentinel

Photo of author

Tim Higgins

Sentinel DX4000 Small Office Storage Server
At a glance
Product Western Digital Sentinel DX4000 Small Office Storage Server (WDBLGT0080KBK) [Website]
Summary Four-bay small business Intel D525 Atom based NAS running on Windows Storage Server 2008 R2 Essentials
Pros • Bundled bare-metal client backup
• Handles up to 25 users
• Provision for dual external power supplies (one supplied)
• USB 3.0 ports
Cons • No power save mode
• Fan runs full blast when system is off
Extremely long RAID re-initialization times
• No Apple Time Machine support
• Limited backup options

To date, WD has made its name in the NAS world via its inexpensive My Book single and dual-drive NASes. There is also the unimpressive and dated four-drive ShareSpace, which I would think WD would have retired by now.

When it decided to get serious about a NAS aimed at small and very small businesses, WD decided to turn to Microsoft for its OS. So it based the DX4000 "Sentinel" on Windows Storage Server 2008 R2 Essentials. For those unfamiliar with this beastie, you can think of it as sort of Windows Home Server with its big-boy pants on. I’m going to let Craig Ellison do a detailed feature review on the DX4000, so that’s all I’m going to say about its features for now.

The DX4000 comes dressed for business with a black chassis that’s mostly metal except for some plastic cover trim parts. The four bays hold 3.5" SATA drives using a neat trayless design. However, WD didn’t provide a lock for either the outer drive bay door or the drives themselves. The front panel view with callouts shows the LCD status panel, drive lights and buttons.

WD DX4000 front panel

WD DX4000 front panel

Notable on the rear view below are dual power ports for redundant power (just add another external power brick), dual Gigabit Ethernet ports and two USB 3.0 ports.

WD DX4000 front panel

WD DX4000 front panel

Once NASes get into this class, I like them to have audible alerts. But WD decided the DX4000 could do without it.


Removing the metal cover reveals the top-mounted main board, which is easy to get to. Replacement of the single fan isn’t so easy and requires removing the board.

WD DX4000 inside view

WD DX4000 inside view

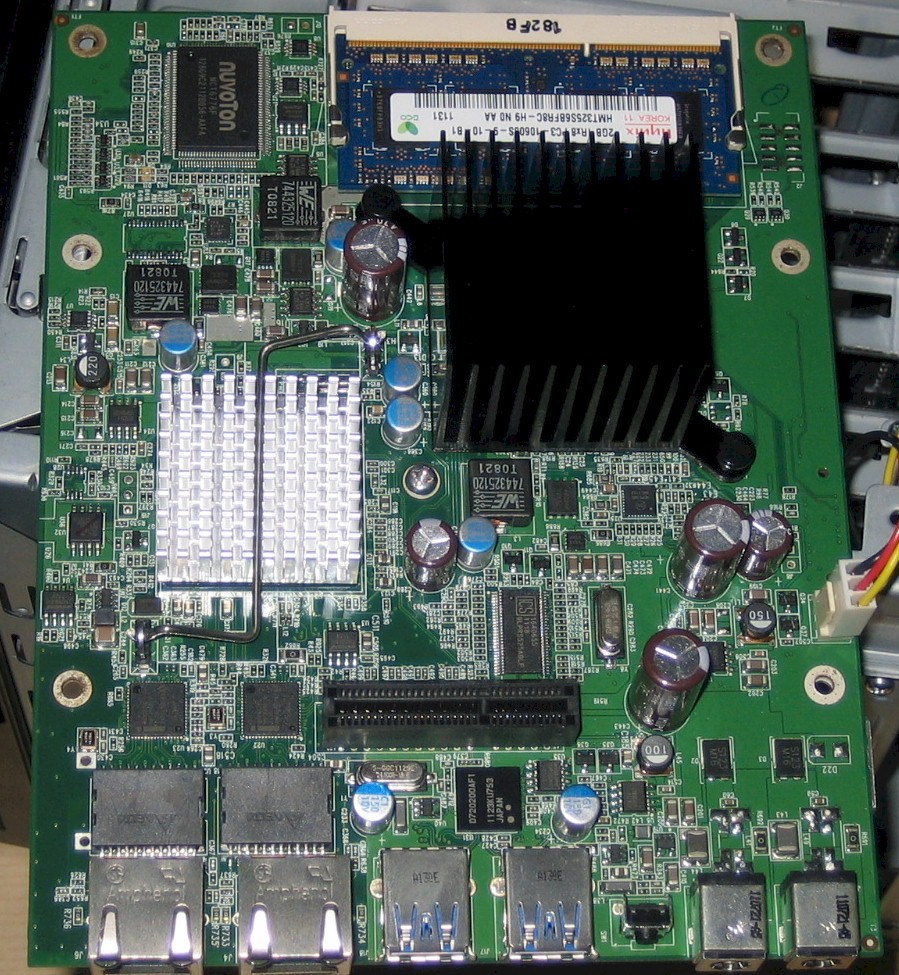

The DX4000 is powered by an 1.8 GHz Intel D525 Atom with 2 GB of DDR3 RAM. This puts it in the same hardware class as Iomega’s px6-300d and Thecus’ N4200PRO. I was able to take the photo of the board below by undoing the screws and flipping the board over without having to remove the fan or front panel cable.

WD DX4000 board

WD DX4000 board

I found two Intel WG82574L Gigabit Ethernet controllers that WD has configured into a failover configuration. They said that aggregation isn’t supported. But I didn’t see any reason why you couldn’t configure them that way by Remote Desktopping in and having at it. And while you are there, you could switch to 4K or 9K jumbo frames if you think that will buy you any additional performance (not likely).

Other key components are an NEC 720200A USB 3.0 Host Controller for the two rear panel ports, and a Nutovon NCT6776F Super I/O. I couldn’t find any flash and, as previously noted, there is no audible signaling device. I was able to see, courtesy of the Windows Device Manager, that the DX4000 uses an Intel 82801IR (ICH9R) Southbridge companion to the D525 Atom.

Power consumption measured 38 W with the drives spun up. There is no power save mode. Fan noise was low when the system was running, but the head noise from the enterprise grade drives was definitely audible in my quiet home office setting.

For some inexplicable reason, the fan runs full blast when you shut the system off! The only way to stop this is to unplug the system. I guess WD figures that you’ll never want to shut the DX4000 off. The fan also runs full blast during initial setup until the system is finally ready for business.

The 8 TB model I received for review (WDBLGT0080KBK) had four 2 TB enterprise-grade WD RE4-GP (WD2002FYPS) drives installed and configured into a a RAID 5 array, partitioned into System (C:) and Data (D:) drives. If you get a 4 TB model, it comes with two drives in RAID 1. But when you add a third drive, WD has worked with Intel to add a bit of NAS magic to automatically migrate to RAID 5.


As noted earlier, I’m going to leave it to Craig Ellison to do a feature review of the DX4000. Aside from the RAID level migration trick mentioned above, if you know what Windows Storage Server 2008 R2 Essentials can do, you pretty much know the DX4000’s features.


I tested the DX4000 using our standard NAS test process. Since it came configured in RAID 5 and there isn’t an easy way to mess with that, I ran tests only in that mode. So you’ll only find the DX4000 in the NAS Charts by using the RAID 5 benchmarks.

The Benchmark summary below shows Windows RAID 5 File copy write and read in the low-to-mid 70 MB/s range. NASPT RAID 5 write was a bit higher at 80 MB/s, but read was significantly lower at 68 MB/s.

WD DX4000 benchmark summary

WD DX4000 benchmark summary

WSS’ backup utility can be used to back up only the entire system. So I checked backup speed to an WD MyBook 3.0 formatted in NTFS using my standard robocopy routine to copy the 4.35 GB ripped-DVD test folder. As the summary above shows, this came in at 60 MB/s.

I didn’t check network backup because the WSS backup utility works only with another WSS system, which I don’t have.

I couldn’t test the DX4000’s iSCSI performance, because it doesn’t support being used as an iSCSI target.

The RAID 5 File Copy Write and Read charts below are filtered to show only four-bay NASes. The DX4000 lags significantly behind the D525-powered Thecus N4200PRO, but also behind products with lower-powered CPUs like the D510 Atom-based Synology DS411+.

RAID 5 File Copy Write Comparison - four bay products

RAID 5 File Copy Write Comparison – four bay products

RAID 5 read sees the DX4000 slipping even lower still, and outperformed by even Marvell Kirkwood powered products like the QNAP TS-419P+.

RAID 5 File Copy Read Comparison - four bay products

RAID 5 File Copy Read Comparison – four bay products


If you’re looking for the fastest D525 Atom NAS, the WD DX4000 won’t be your choice. But there are other aspects to NASes than performance, which Craig covers in his complete review. You can also use the NAS Finder and NAS Charts to compare it with other products.
