Linksys Media Center Extender with DVD Review: Windows MCX, Take 2

Photo of author

Jim Buzbee


Linksys DMA2200

At a Glance
Product Linksys Media Center Extender with DVD (DMA2200)
Summary “Version II” Windows Vista Media Extender with HD support
Pros • HDMI Port
• 1080p HD Support
• Dual-band draft 802.11n wireless
• Upscaling DVD player
Cons • Limited audio and video format support
• Windows Vista only
• Fonts too small for across room viewing
• Buggy

Every time I review a network multimedia player, I get feedback suggesting that I check out what the Microsoft Media Center can do. I’ve always been a bit hesitant, because I’ve never been a fan of using a noisy, power-hungry computer just to play back my videos, music and photographs on my TV.

But in this review, I’m going to check out one of the “Version II” Vista-only class of Windows Media Center Extenders that are designed to alleviate my concerns. These set-top type devices still require a Windows PC for their content, but you can leave the PC down in the basement or home office, and let the extender grab its content across your home network for display in the entertainment center.

One of the first companies to release a Version II extender is Linksys. Linksys markets two versions of their extender, one with a built-in 1080i upscaling DVD player, the DMA 2200, and one without – the DMA 2100. In the review, I’ll run the 2200 through its paces.

Visually, if you ignore the three 802.11n antennas, the 2200 doesn’t look much different then a compact DVD player. It is designed to fit right into your entertainment center. The back panel of the device (Figure 1) shows the various connections that the device supports.

Back Panel
Click to enlarge image

Figure 1: Back Panel

Along with standard-definition support, you can see an HDMI connector, digital audio and component video ports. The 2200 supports output at up to 1080p giving true high-definition video. For network connectivity, you can see a 10/100 Ethernet jack and the antennas for dual-band draft 802.11n support.

802.11n is designed to give you the bandwidth you need for streaming high-definition video, and dual-band (2.4 and 5 GHz bands) operation should help reduce interference with other wireless devices you may have around the house. Note that the 2200 is 802.11n Draft 2.0 Wi-Fi Certified.

One curious connector is a USB 2.0 port that is documented as being “for service only”, but was likely originally intended for external storage. You’ll also note the absence of a fan vent. In use, the device is fanless and silent. While running it draws around 12 W, and none when off. It completely shuts down.

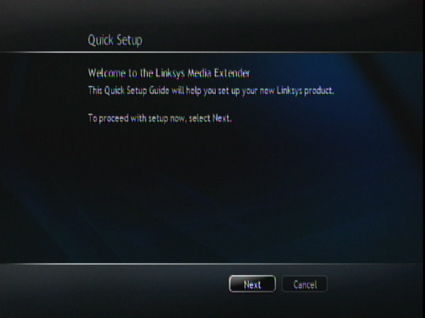

Setting the 2200 up was fairly straightforward. Figure 2 shows the initial setup screen on my TV after I plugged everything in and powered it up. (Please excuse the quality of the user interface screen shots. I had to do a standard-definition capture and the fonts are pretty small.)

Initial Setup

Figure 2: Initial Setup

Since I have Ethernet support in my entertainment center, I first set the 2200 up using a wired connection. Figure 3 shows the setup screen where a network type selection can be made.

Network Setup

Figure 3: Network Setup

A few screens later, I was given a unique “Setup Key” that I used to pair the extender with Windows Media Center, running on a Vista laptop (Core 2 Duo, 1.73 Ghz, 1Gig RAM, Home Premium Version) that Linksys was kind enough to supply me with. Once I paired the two up, I was ready to explore. The whole setup took around 10 minutes, start to finish.

I’ll note here, however, that one morning when I turned the 2200 on, it acted as if it had never been set up. I had to go through the whole initialization and “pairing” process again. Measuring the time it took from power-on until it synched with the PC and I could use the 2200 showed it was just under a minute, which is a bit long as these devices go.

In Use

Reviewing a device like this is a bit difficult, because a good deal of the functionality is provided by Windows Media Center, not the device itself. But for the purposes of this review, I’ll just treat the two as a package since that is what a consumer would see after setting up a 2200.

Figure 4 shows the main user interface displayed on the TV after powering the device up and entering the top-level menu.

Main Menu

Figure 4: Main Menu

In general, the user interface is fairly attractive and if you’ve used Media Center on a Vista PC, it looks nearly the same. But you won’t find the same level of responsiveness and the same fluid menu animations on the Extender that you’d find on the PC. As you scroll around, things lag and jump just a little bit more.

You’ll see in the menu in Figure 4 that there’s a lot of dead space. I would have preferred to see the screen real estate better utilized. Also note the use of small fonts as represented by the clock in the upper right. Again, there is a ton of open space, but the clock is tiny.

I suppose I’d eventually get used to it, but I found the top-level menu a bit frustrating to use. Basically, you scroll up and down to find the major categories such as Music, Sports, etc. and then you scroll left and right to narrow your selections down.

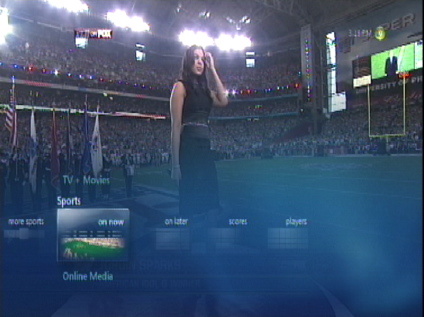

Figure 5 shows the main menu overlaid on live video. The menu shows vertical categories of TV + Movies, Sports and Online Media, while my current selection is highlighting on now.

Content Selection

Figure 5: Content Selection

I can’t tell you how many times I’d hit the up arrow again in this situation to go to Sports, since it is above my current selection. But in reality, I’m already in Sports so my button press would instead take me to TV + Movies. I’ll note at this point that I found the non-backlit remote supplied with the 2200 (Figure 6) a bit lacking.

dma220 Remote

Figure 6: dma220 Remote

The remote has a lot of buttons that perhaps could have been consolidated. For example, the one button I found myself using a lot was the Back button, which is the tiny little button just below the volume control. This back button has different functionality than the large “back arrow” button just below it. It would have been nice to consolidate these buttons.

In comparison, while it has fewer features than the 2200, the Apple TV media player gets by with a total of six buttons while the 2200 has 50! On the other hand, the 2200 remote also has learning capabilities, so that it can control power and volume on your TV. Figure 7 shows the learning setup screen.

Learning Remote

Figure 7: Learning Remote Setup

It’s hard to see, but the instructions say to press the “?” key on the remote after the learning session is complete. See any “?” button on the remote in Figure 6? Me neither. These instructions appeared to be completely off the mark. The actual instructions in the manual were much more involved.

Media Playback

Typically, when I review these types of devices, the first thing I do is see how much of my existing media library they can handle. I’ve yet to try a networked media player that could do it all. With the 2200, I first had to get it access to my library. Figure 8 shows the menu where you can configure the 2200 to load media from network drives.

Network Share Setup

Figure 8: Network Share Setup

The problem I had at this point was mounting network shares. All my media is available on the network, but I typically have username/login protection on the shares. This menu gave me no way to specify the login credentials, so I could only access my shares that had wide-open guest accounts.

Note also that when I mounted my shares on the Vista notebook using the proper login credentials, the 2200 still couldn’t see them. To get around this problem, I eventually just copied a sample of my files over to the Vista notebook to check them out there.

So how well did the 2200 do with my files? As usual with these products, it was a mixed bag. Figure 9 shows the picture selection menu where all of the photos are displayed as thumbnails.

Photo Selection

Figure 9: Photo Selection

Linksys documents support for JPG, PNG, BMP, and GIF files and the 2200 had no problem with any of my image files. From this menu, the 2200 could also do a basic “slide-show” of photos. Although there were no options for setting a slide-show transition style between pictures, there was an option at the global level for specifying the time a photo would display on-screen.

As far as music, Linksys supports MP3, WMA, WMA-Pro, AC-3 and AAC-LC Stereo. I couldn’t find any documentation regarding “PlaysForSure” or “Certified for Windows Vista” (or whatever they’re calling it these days) restricted music and I was lucky enough not to be stuck with any of those files to check it out with.

The 2200 had no problem with my MP3 files, but understandably couldn’t play my DRM restricted music that had been purchased from the iTunes music store. Figure 10 shows the Music selection screen where each album is represented by a thumbnail of its album cover.

Music Selection

Figure 10: Music Selection

Music can be listed by artist, genre, album, etc. Once a playlist has been started, you can navigate into the Pictures menu and start a slide-show to play back while the music is playing.

Video Playback

General support for video playback is always hard for these devices, since there are so many different video formats in use. Linksys claims support for MPEG-1 MPEG-2, WMV9 (Standard and High Definition), and VC-1 Advanced Profile 4.0. I first tried out some of the sample WMA videos that were included on my system, which included a couple of 1080p videos that were stunning. Even though I was running on a wired network, however, I still had a couple of times where the video paused and/or stuttered.

For my own stress test, I have a high-definition 1080i Mpeg2 movie with a bit rate of 16 Mbps that I like to use to push media players to their limit. The 2200 handled it without a hitch, which is pretty unusual for these products. But as I tested the rest of my library, it was a bit of a hit-and-miss.

I first downloaded a number of codecs so that the Vista notebook could play most everything. But as I went through the same set on the 2200, I found a lot of unplayable videos. Mpeg1 and 2 files played pretty well and ome of my XviD and DivX videos played, while others didn’t.

For example, I had a collection of movie trailers that I downloaded from, and although the 2200 was able to generate a thumbnail for the menu (Figure 11) none would play.

Video Selection

Figure 11: Video Selection

I also have a large collection of H.264 mpeg4 videos created through Handbrake, but most wouldn’t play. But once again, the 2200 was able to generate a thumbnail. But I also had other H.264 files that played fine.

Some unplayable videos would throw an error indicating that a codec was missing (there is no way to add a codec to the 2200), while others would start and then just immediately finish without complaint as if the movie was done. I also noticed that support for fast-forward and fast-reverse depended on the video type in use. Sometimes they would work, other times not.

Support for high-definition was nice, but as far as support for various formats, I’d say the 2200 did less well than a lot of other network media players I’ve tried. Since a PC is required to use the 2200, I would have hoped that the box would let the PC do a lot of the hard-work and transcode videos that it couldn’t support in hardware, but this doesn’t appear to be the case.

Live TV / PVR

One of the nice features of Microsoft Media Center is support for live TV and PVR features. Linksys supplied me with a USB HD TV-Tuner that I installed on the Vista notebook. With this in place, I was able download a current program guide (Figure 12) and use it to view, pause, record and play back off-the-air HD video on both the PC and on the 2200.

Program Guide

Figure 12: Program Guide

HD live TV is a powerful feature that comes “for free” as opposed to paying a monthly subscription fee to a cable or satellite company. The feature includes the usual PVR capabilities such as the ability to record all episodes of a show, simultaneous record and playback, etc.

Note that with only a single tuner, I could not simultaneously record and watch "live" TV; I could only watch a pre-recorded show, while another was recording. But the Vista Media Center can support multiple tuners, which would let me watch "live" TV and record at the same time.

In my area, I have pretty spotty over-the-air HDTV signals, so I was only able to pick up a couple of strong channels, and several marginal ones. When I had a good signal, things worked well. I could fast-forward, reverse, pause, resume etc. high-definition TV channels. I was especially happy to be able to view the Super Bowl in high def. Very nice.

But there were issues. When my signal was very bad, I’d just get an error indicating a lack of signal. But when I had a marginal signal, I’d occasionally get complete lock-ups where the 2200 appeared to be struggling and I’d lose connection to the Media Center on the PC (Figure 13).

Lost Connection

Figure 13: Lost Connection

I suspect the problem was in the TV device driver on the notebook and not on the 2200. But regardless, it was annoying when I’d have to reset the box just because I tried to change channels.

When I had a good input signal, I’d say the feature was well done, although once again, the fonts in the program guide were way too small and not easily visible across the room. In general, I’d say my six year-old dual-tuner satellite PVR box has a better user interface than the 2200. But you can’t beat the monthly subscription cost of the 2200…free!.

I won’t go into any deatils on the built-in upscaling DVD player, as it pretty much worked like any other. I checked it out by watching a movie and I judged it to be of good quality and with the features you’d expect of a higher-end player. Adding the DVD capability to the base price of the 2100 only costs an extra $50 or so, so you’ll have to judge if having a built-in unit is worth the extra money vs. a stand-alone unit.

Internet Content

The 2200 can use your own media, but it also has the ability to view assorted content from the Internet. This includes Internet radio stations, Internet video sites, news and sports information. (Figure 14).

Online Content

Figure 14: Online Content

I found a few interesting sites through this capability, but it was a bit of a struggle. Many of the sections wanted to download and install their own viewer, which had to be accomplished on the PC. In addition to being a pain, this made me nervous, not really knowing how safe this was.

A couple of times I experienced what appeared to be an unreachable site that more-or-less locked the box up. Others sites were “free trial” only, and all had their own user-interface and style that didn’t always fit with the rest of the system. Another time, I navigated deep into a “Discovery Channel” area and then hit the normal “back” button. Instead of going back one level, it kicked me all of the way out and back to the main 2200 menu.

In general, I found that the available "Internet" content was often really nothing more than low quality trailers or commercials for the real channels. Other channels, such as the “Home Shopping” channel, were nothing but sales vehicles. Overall the “Internet Content” area felt like a bit like the 2200’s low-rent district, with a few gems and a lot of junk—pretty much like the real Internet!


I’m lucky enough to have Ethernet available in my entertainment center, but I suspect that most people don’t. For this reason, the 2200 also has draft 802.11n wireless capability. With average throughput of over 40 Mbps, as shown in our Wireless Charts, draft 802.11n should provide more than enough bandwidth to stream HD content.

Figure 15 shows the setup screen for wireless networking where the 2200 has done a site survey and is asking me to select an access point.

Wireless Setup

Figure 15: Wireless Setup

In my case, I first set the 2200 up to connect to my existing 802.11g network. This worked, but if you plan on watching a lot of HD content, I would recommend that you use a wired network, or go with an 802.11n wireless connection.

When I tried out the 2200 with the WRT600N [reviewed] draft 802.11n router that Linksys provided, I successfully viewed several HD streams including a 1080p movie and my stress-test mpeg2 video. But even on the 802.11n network, I saw a couple of slight "stutters" in the video when connected over a distance of about 30 feet and one floor between the 2200 and WRT600N. So if you can, go with a wired network for the best HD streaming experience.

By the way, a contact at Linksys told me that they recommend at least 50 Mbps of bandwidth on your network in order to handle HD streams along with all of the normal network traffic. This seems about twice what I would expect, but that’s the word from Linksys.

As far as range, a few quick tests around my house showed no issue with low-bandwidth videos on my regular 802.11g network, even though my Linksys WRT54G router is in a pretty poor location, i.e. in the basement around a lot of duct-work. With high-definition videos, as expected, it was a different story, with lots of breakup using the 802.11g connection.

Under the Covers

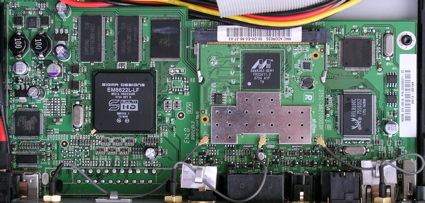

Figure 16 shows the main board of the 2200.

Main Board
Click to enlarge image

Figure 16: Main Board

From this picture you can see that the video processing is provided by a Sigma Designs 8622L Media Processor. The dual-band draft 11n wireless support is on a Marvell-based mini-PCI card, using an 88W8363 MAC/Baseband chip and probably an 88W8060 2.4 / 5 GHz RF Tranceiver under the RF shield. The 10/100 Ethernet port comes courtesy of a RealTek 8100c.

Most, if not all, version 1 extenders run Windows CE and my guess is that’s what the 2200 runs. Note that the 2200 manual listed several open-source libraries for image support, audio support and encryption, but made no mention of an operating system.

A network port-scan of the box was unable to fingerprint ID the OS, and it turned up only a couple of open ports. Once of the ports had a RomPager web server running on it but in the time I had, I was unable to get it to serve up anything interesting.

A review of this Media Center architecture powerpoint presentation found on the Microsoft site, turned up a few interesting tidbits about the MCX (Media Center Extender) architecture:

  • The user interface is actually rendered by Microsoft’s Media Center software on the computer and delivered to the MCX device (the 2200, in this case) via a Microsoft Extender Session Protocol (XSP) that runs over Transport Layer Security (TLS).
  • TV, FM radio, Windows Media, VC-1 (for Windows Media Video 9) and MPE formats are streamed via RTP, with RTSP used for command and control. Everything else uses HTTP, including MPEG 1 and 2, WAV and "OEM-added" formats. This is intended to allow additional media formats to be supported without requiring software to be installed on the Vista PC.
  • MCX devices use Windows Media DRM for playback of DRM-protected content.

Closing Thoughts

Microsoft has spent a lot of time (and advertising dollars) trying to promote the idea of using a PC as the heart of your home entertainment system. PC manufacturers joined the effort too, trying to produce PCs that were stylish and quiet enough to be welcome in your living room.

But in the end, Media Center PCs (except for some homebrew machines) still looked, and more importantly, sounded like PCs and didn’t go mainstream. And even though Microsoft managed to "convince" some of its partners to come out with Media Center Extenders, those too were expensive and tended to stay on store shelves.

The other problem was that Microsoft’s initial approach required a special "Media Center" version of Windows, which tended to come only on more expensive machines that were, for the most part, not living-room friendly. So a consumer had to ante up big time before they could even see what all this Media Center hubbub was about.

This time around, Microsoft has taken a smarter approach. First, they’ve included the Media Center functions in the Vista Home Premium version that most consumer PCs ship with. So that lowers the hassle factor considerably by giving more consumers a chance to play with Media Center without having to spend big bucks on a "Media Center" PC.

And second, they’ve lowered the cost of the Media Center Extender to be more in line with other networked media players. Of course, the fact that many new PCs are powerful dual-core machines with enough power to handle HD processing and the availability of HD USB tuners has helped a bit, too.

But the Media Center extender approach still depends on a PC, even if you don’t need or want off-air TV viewing and recording and just want to watch or listen to stored content you already have. And that adds cost, power consumption (my test laptop drew about 55 Watts), noise and heat—all the things I want to avoid.

That being said, although I found a lot of little issues with the 2200, I generally enjoyed using it for its HD TV / PVR support. If I had better off-the-air coverage and a Windows Vista machine in the house, I might even be tempted to drop my monthly subscription to local channels on my satellite system! I also enjoyed playing back the high-definition demo videos that came with it.

But in reality, I don’t have any significant HD videos other than promos and demos. There’s just not much full-length content available in downloadable form. And my satellite set-top box is just fine for my live TV /PVR needs, with a better user interface than the 2200, too.

So how does the 2200 stack up against my current favorite media player, the Apple TV? Well, an off-the-shelf Apple TV is even more limited than the 2200 as far as supported video formats. So an apples-to-apples comparison (no pun intended) would favor the 2200. And Apple doesn’t have a live TV / PVR solution. You’d have to put one together yourself using products like Elgato‘s EyeTV tuners and software.

But if you’re willing to get your hands dirty, a hacked AppleTV will play a wider range of stored material. In my case, it handles nearly everything in my video library: MPEG-4, H.264, XviD, DivX, VOB files, DVD images, etc. And it’s done across the network from small, efficient, and quiet NAS devices; no computer involved. I also find that the photo slideshow and music playback features and the user interface on even the stock Apple TV are head-and-shoulders above the Media Center’s capabilities.

So it depends on where you’re starting from. If you already have a Windows Vista Home Premium (or Ultimate) machine, then a DMA-2200 for around $300 (or a DMA-2100 for around $250) is pretty attractive compared to, say, a Netgear EVA8000 [reviewed] for around $350, which doesn’t have dual-band draft 11n wireless and fairly limited Internet content.

But if you don’t have a Vista PC in the house and just want to look at your photos or listen to your ripped / downloaded music in the comfort of your living room, then you’ll probably want to give the new generation of Windows Media Center Extenders, including the DMA-2200 and 2100, a pass.
